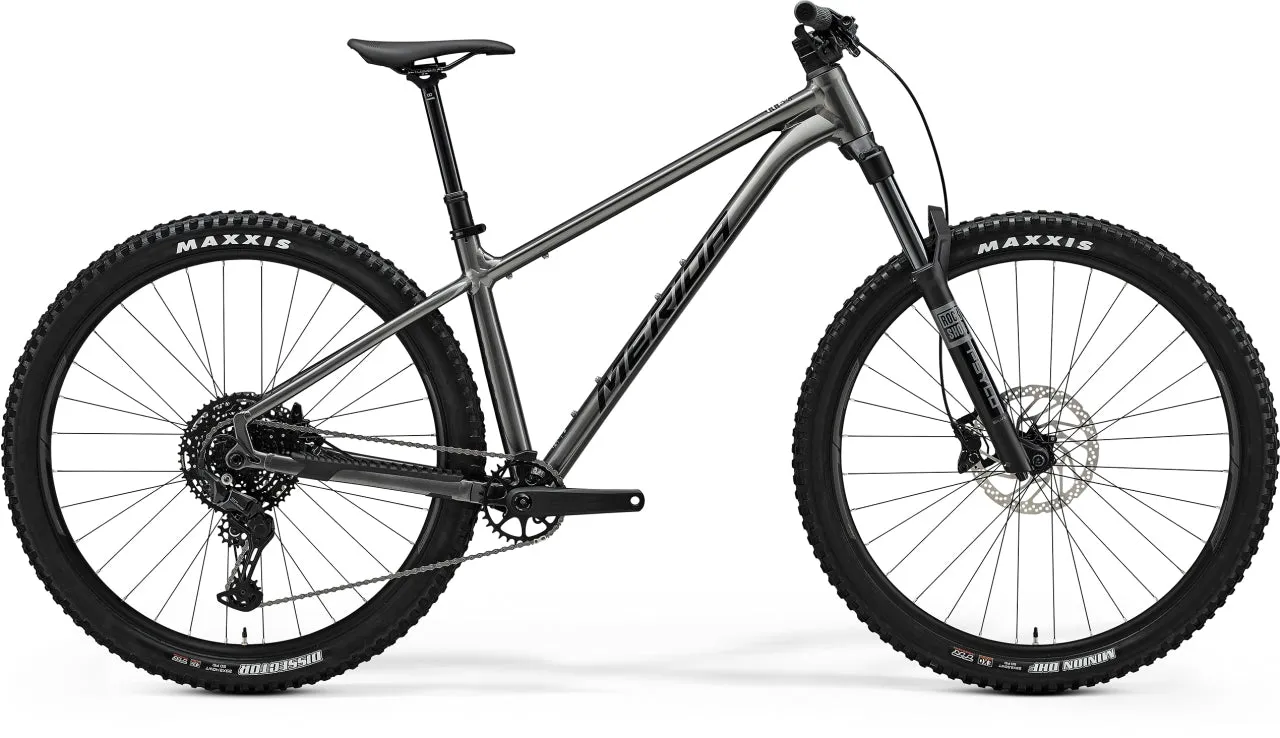

| FRAME | BIG.TRAIL TFS, material: aluminium, 29x2.5" max. Wheelsize, 148x12 mm axle standard, BSA bottom bracket standard |
| FORK | Rock Shox Recon Silver RL, 140 mm suspension travel, Tapered, 42 mm fork offset |
| BRAKES | Tektro Gemini M530, 4 piston, 2 piston |
| ROTORS | Tektro TR180-45 |
| HEADSET | MERIDA M4455 |
| HANDLEBAR | MERIDA COMP TR, material: aluminium, 780 mm width, 20 mm rise |
| HANDLEBAR STEM | MERIDA EXPERT TR, material: aluminium, 35 mm diameter, 0° stem angle, 50 mm |
| GRIP | MERIDA COMP EC |
| DERAILLEUR (R) | Shimano CUES U6000 |
| SHIFTERS | Shimano SL-MT500-L / Shimano CUES U6000 |
| SEAT POST | MERIDA COMP TR, 30.9 mm diameter, 0 mm setback, S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL/XXL 175 mm travel seatpost |
| SEAT CLAMP | MERIDA EXPERT |
| SADDLE | MERIDA COMP SL, V-mount |
| PEDAL | VP VPE-891 |
| CHAIN | Shimano LG500 |
| CRANK | Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up |
| FREEWHEEL | Shimano LG300, 11-48 teeth, 10 speed |
| HUBS | Shimano TC500-B / Shimano TC500-HM-B, 110x15 mm width front hub 148x12 mm width rear hub, 32 spoke holes, Centerlock |
| RIM | MERIDA COMP TR, 29 mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
| TYRE FRONT | Maxxis Dissector, 29x2.4", fold, TR EXO Dual |
| TYRE REAR | Maxxis Dissector, 29x2.4", fold,TR EXO Dual |
| AXLES | MERIDA COMP TR, including removeable lever, 6/4 mm allen key |
| SPOKES | Black stainless |
| WEIGHT | 14.48 kg |
| MAX. WEIGHT | 135 kg |
