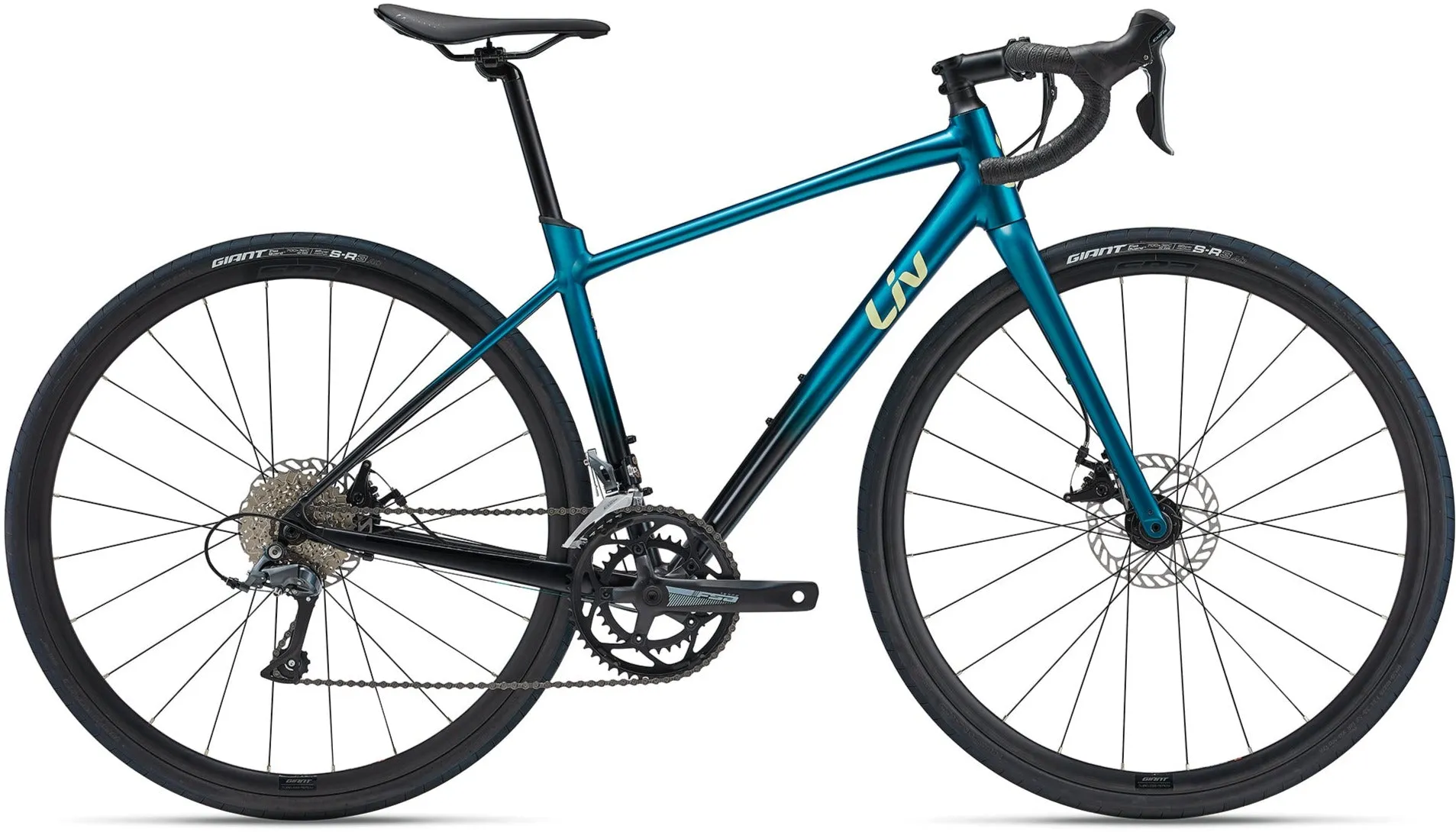

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability both on-road and off-road, and select models offer compatibility with tubeless tires up to 38c. With the OverDrive steerer and powerful disc brakes, you'll enjoy precise handling and reliable stopping power for confident riding in any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
| Sizes | XXS, XS, S, M, L |
| Colour | Sea Sparkle |
| Frame | ALUXX-grade aluminum, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Connect, 31.8mm XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm |
| Grips | Liv All Condition |
| Stem | Giant Sport XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm |
| Seatpost | Giant D-Fuse, alloy XXS: 300mm, XS: 300mm, S: 300mm, M: 350mm, L: 350mm |
| Saddle | Liv Approach |
| Pedals | N/A |
| Shifters | Shimano Claris |
| Front Der. | Shimano Claris |
| Rear Der. | Shimano Claris |
| Brakes | Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Claris |
| Cassette | Shimano CS-HG50, 8-speed, 11x34 |
| Chain | KMC Z83 |
| Crankset | FSA Tempo, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | cartridge |
| Rims | Giant S-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | stainless |
| Tires | Giant S-R3 AC, 700x32c |
| Extras | 38mm max tire size |
